Multi Function 80w Smart Battery Charger

• Charge Lithium LiPo/ LiFe/ Li-Ion Batteries 1s-6s (LiPo 3.7v - 22.2v)

• Charge NiMH/ NiCad Batteries 1s-15s (1.2v - 18.0v)

• Charge PB Batteries (2v – 20v)

• 100v-240v AC Power Input

• Secondary 11v-18v Terminal Power Input

• Fitted EU Plug with UK Adapter provided

• Variable Charge Current 0.1A multiples (0.1A to 7.0A)

• At 7.0A, chargers a fully depleted 1600mAh NiMh battery in 20 minutes

• At 7.0A, charges a 75% depleted 1450mAh LiPo battery in 15 minutes

• Supplied primary Deans (T-Connector) Charge Lead

• Small Tamiya and JST Adapter Leads provided

• Lithium FAST-Charge option to quickly charge LiPo batteries (may affect battery overall charge)

• Lithium STORAGE-Charge option to optimally charge/ discharge Lithium batteries for storage, extending their life and maintaining charge capacity

• Save up to 5 charging profiles for different batteries

• Optional thermometer port for auto-safety temperature cut-off feature (thermometer not supplied)

• Waste Time Option to allow battery cool down between charging cycles

• In built safety timer for charger cut-off after a period of time, to prevent overcharging damaged/ faulty batteries

• Battery Internal Resistance Tester for full battery information

The Multi Function 80w Smart Battery Charger is the premium charging option in NUPROLs NP Power range. This Charger can charge/ discharge a vast selection of battery types from Lithium to Nickel to Lead based batteries. Powered via an AC 100v-240v power lead, you are also supplied with a DC 11v-18v input terminal lead to power the charger from larger battery packs when away from a mains power supply. This charger is capable of extending your Lithium power cells life by charging/ discharging them to their optimal charge rates. Further features include an inbuilt safety timer to prevent the charger from continuously attempting to charge damaged batteries unable to reach 100% capacity. This charger is for full-time enthusiasts or business owners requiring a reliable, feature loaded charging option.

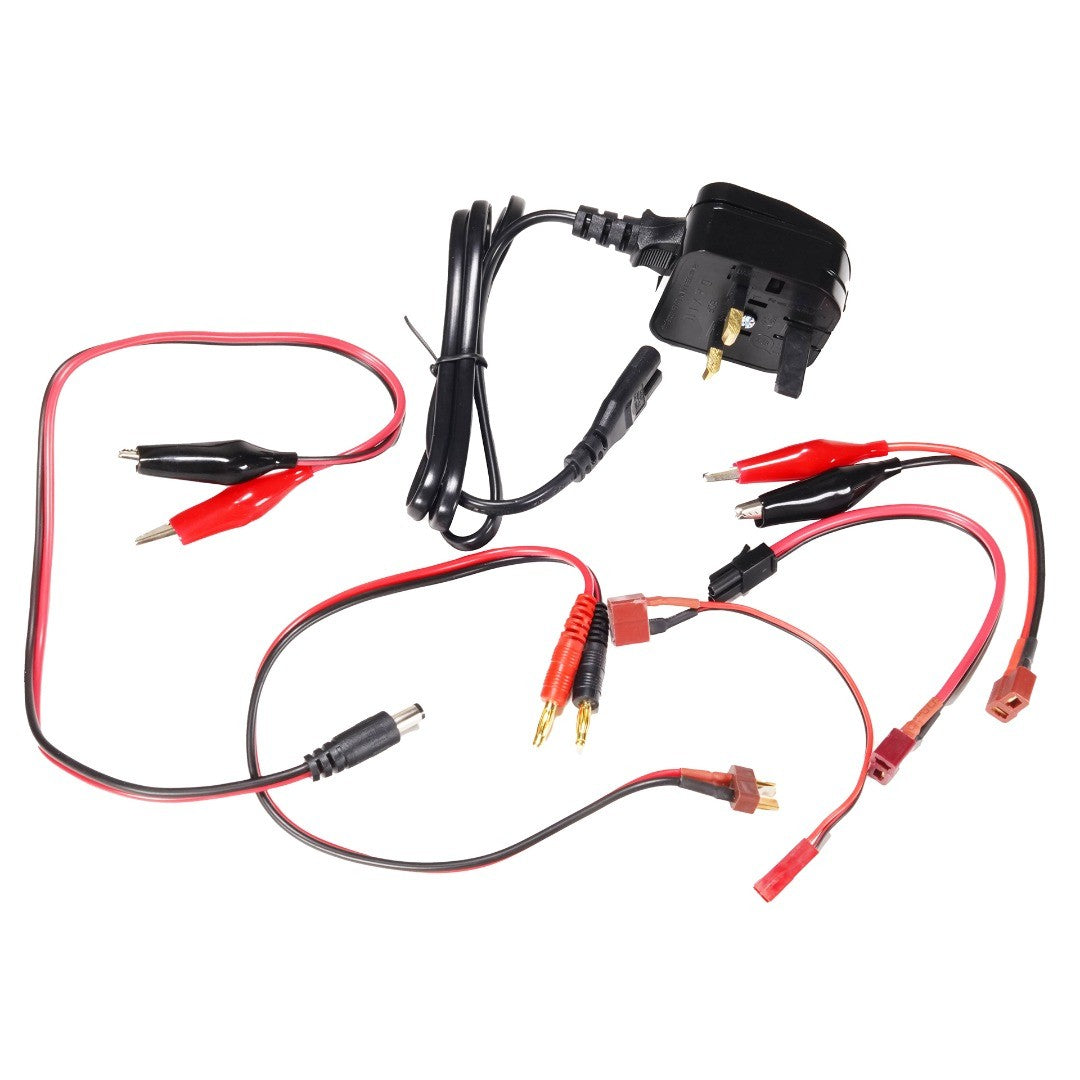

What is in the box?

(x1) Multi Function 80w Smart Battery Charger

(x1) Deans (T-Connector) Output Lead

(x1) Deans to Small Tamiya Adapter Lead

(x1) Deans to JST Adapter Lead

(x1) Deans to Crocodile Clip Adapter Lead

(x1) EU Power Lead + UK Plug Adapter

(x1) DC Input Power Lead with Crocodile Clips

(x1) Instruction Manual

LiPo Safe Use Warning

WARNING – Strict instructions must be followed to ensure the safe use of Lithium-Polymer Cell batteries.

1. Use a LiPo Balance Charger ONLY!

2. Ensure the Balance Lead is connected when charging.

3. Always use a Fire-Retardant LiPo Charging Bag when Charging Battery.

4. Never leave LiPo Batteries charging unattended.

5. Always check cell voltages before and after charging - Minimum Cell Voltage (3.3v), Maximum Cell Voltage (4.2v).

6. Maximum Charing Current of 3C.

7. In the event that Battery Cells show signs of swelling/ expansion or the surface temperature is in excess of 70°c you must disconnect and stop using the battery. Failure to comply may result in the rapid venting of the battery cells which can lead to fire and explosions.
